Item # HUM 7-D-1
7-D-1
$31.5463 / EA
- Guest Out of Stock
- Contact for ETA
- Minimum Order Qty: 1
- Available Only in Qtys of: 1
- Log in to see if custom discounts apply

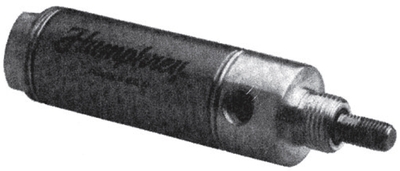

Click image to enlarge
Item # HUM 7-D-1
7-D-1
- UM : EA
- Weight: 1.00
Features:
- Barrel
- Stainless steel (Type 304).
- Drawn and polished I.D. provides ideal lube-holding, low friction surface.
- Matte finish on O.D.
- Barrel attached to heads by Humphrey roll forming process.
- Heads
- Aluminum. Internal face grooved for positive air flow to piston seals.
- Piston Rod
- Accuracy stock, centerless ground and polished Type 303 Stainless Steel, standard all models.
- Wrench flats, standard most models, chamfered for easy wrench contact without rod damage.
- Threads are Roll Formed for strength and durability.
- Piston
- Unique Humphrey Piston may be factory assembled in two different ways – same overall dimensions with or without Bumpers.
- Piston threads are Roll Formed for greater strength and durability.
- Seals
- Buna N standard on all models.
- Fluorocarbon (fluoroelastomer…Option F) available for high ambient temperatures; for extremely high cycling conditions with limited lubrication; or mild chemical resistance (air supply contaminants and /or lubricants).
- Seal design insures constant contact with cylinder barrel…eliminates seal collapse and blow-by.
- Rod Bushing
- Oil permeated bronze, ball-sized to close tolerance…provides rod support and smooth, low friction rod movement for longer cylinder life.
- Pressure Ports
- Full, unrestricted porting for maximum air flow…combines with groove in Heads to provide fast cylinder response and smooth rod movement.
Dimensions:
- Nose Thread: 5/8-18 x 1/2"
Ports: 1/8" NPT
Specifications
MANUFACTURER | HUMPHREY |
ACTUATION | DOUBLE ACTING |
BORE | 3/4" |
STROKE | 1" |
FRONT MOUNT | THREADED NOSE MOUNT |
REAR MOUNT | NONE |
CUSHIONS | NONE |
MAGNET | NONE |
OPTIONS | NONE |
