Item # FRE 1J-206-01
1J-206-01
$116.0000 / FT
- Guest In Stock
- Minimum Order Qty: 1
- Available Only in Qtys of: 100
- Log in to see if custom discounts apply
Item # FRE 1J-206-01
1J-206-01
- UM : FT
- Weight: 2.30

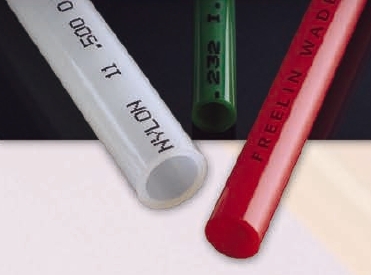

Freelin-Wade chose Nylon 11 for its tubing because it has high chemical resistance properties while absorbing less moisture than other nylons. Nylon 11 is also much less rigid than the “6-formulas” of the resin. It allows for a lighter weight wall, greater flexibility and smaller bend radius. It’s also worth noting that unlike the early nylon compounds, Freelin-Wade’s Nylon 11 resin is manufactured from castor oil, a renewable resource. We like to call it “environmentally advantaged.”
Freelin-Wade manufactures Nylon 11 tubing in a variety of sizes and colors. There are also any number of variations possible. We’re happy to match any color you need, configure a coil, bond up to two tubes, print it and cut it to length. Freelin-Wade can make a Nylon 11 tube to meet your needs.
Features:
- Strong, lightweight and fl exible
- Dimensionally stable
- Heat and light stabilized
- Resistant to corrosion and stresscracking
Other Specifications:
- Wall Thickness: 0.050"
- Bend Radius: 2"
- Pressure Rating:
- 250psi at 75 Degrees F
- 150psi at 150 Degrees F
Specifications
MANUFACTURER | FREELIN WADE |
MATERIAL | NYLON 11 |
O.D. | 0.375" |
I.D. | 0.275" |
LENGTH *FEET | 100 |
COLOR | BLACK |
HARDNESS | 78 ROCKWELL R |
MANUFACTURER SERIES | FRE-LON |
MIN PRESSURE | -28 |
MAX PRESSURE | 250 |
