Item # UCI BGV-24
BGV-24
$276.4580 / EA
- Guest Out of Stock
- Contact for ETA
- Minimum Order Qty: 1
- Log in to see if custom discounts apply
Click image to enlarge
Item # UCI BGV-24
BGV-24
- UM : EA

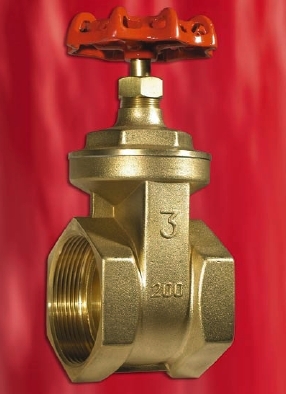

BGV SERIES 2-WAY GATE VALVES
- Suitable For Water-Works, Domestic & Agricultural
- Finely Cast Sand Blasted Heavy Brass Body
- Low Pressure Drop
- P.T.F.E. Seats and Seals
- Non Rising Stem
- Cast Steel Hand-Wheel
- NPT Female by Female Threads
- 200 PSI Cold Non-Shock Working Pressure
- +40°F to +200°F Temperature Range
PART MATERIAL
- Body - OT58 Brass
- Gate - OT58 Brass
- Stem - OT58 Brass
- Body Cap Sealing - PTFE
- Cap - OT58 Brass
- Stem Ring - OT58 Brass
- Package Gland Seal - PTFE
- Packing Gland - OT58 Brass
- Packing Gland Nut - OT58 Brass
- Red Round Handle - Steel
- Disc - OT58 Brass
- Handle Nut - OT58 Brass
Specifications
| MANUFACTURER | UCI |
| VALVE TYPE | GATE |
| PORT 1 | 3" NPT, FEMALE INLET |
| PORT 2 | 3" NPT, FEMALE OUTLET |
| OPERATOR | HAND WHEEL |
| MATERIAL | BRASS |
