Item # UCI E115/S2S-4
E115V/S2S-4
$730.3800 / EA
- Guest Out of Stock
- Contact for ETA
- Minimum Order Qty: 1
- Available Only in Qtys of: 1
- Log in to see if custom discounts apply
Click image to enlarge
Item # UCI E115/S2S-4
E115V/S2S-4
- UM : EA

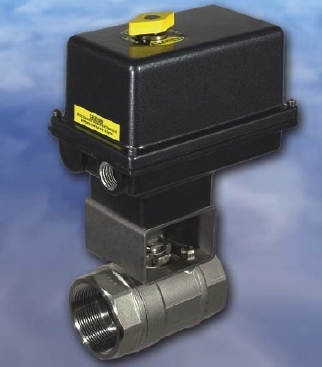

STAINLESS STEEL 2-WAY 2,000 PSI ELECTRIC ACTUATED BALL VALVE
ACTUATOR Specifications:
- Cast Aluminum Housing
- Thermal Overload Protection (Std.)
- Permanent Lubrication
- 0° F - 150° F (Normal Range)
VALVE Specifications:
- 2-Way Stainless Steel Reduced Bore
- 316 Stainless Steel Ball + Stem, CF8M Stainless Steel Body
- 29 Hg-2000 PSI W.O.G. 1/4” - 1” (1500 psi 1 1/2” - 2” ) Cold Non-Shock
- RTFE Seats
- Blowout Proof Stem
- -20° F to 450° F
Specifications
| MANUFACTURER | UCI |
| FUNCTION | 2 WAY, 2 POSITION |
| OPERATOR | SOLENOID |
| SIZE | 1/2" NPT |
| PORT TYPE | REDUCED |
| VOLTAGE | 115VAC |
| MATERIAL | STAINLESS STEEL |
